Barcode Scanner 1D Laser Wired with Stand

Barcode Scanner


SKU BS-1100L Category Tag

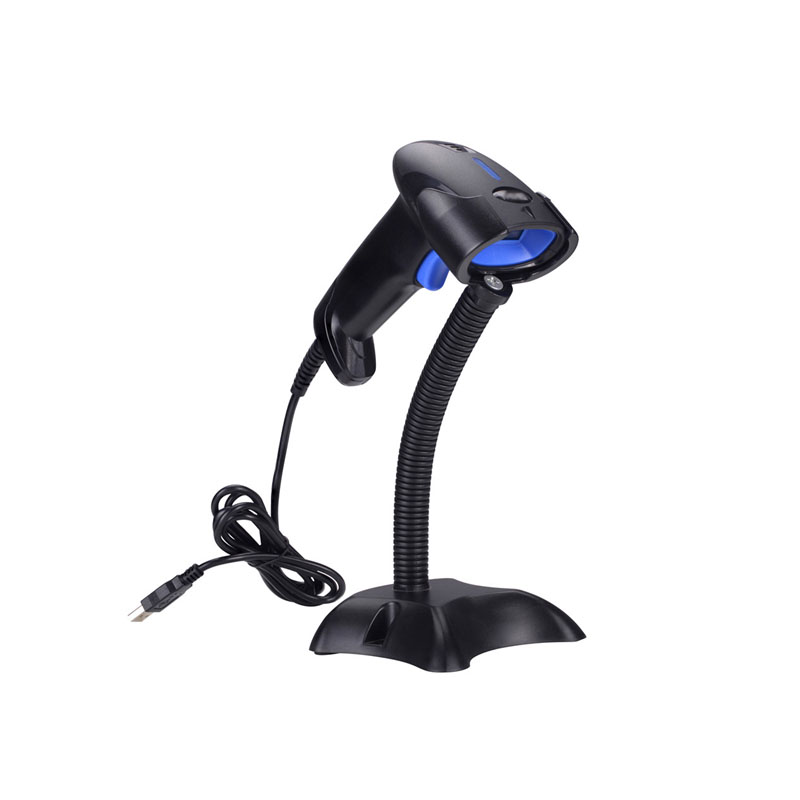

Barcode Scanner 1D Laser Wired with Stand

  • No driver needed,plug and play.
  • Support the multinational language keyboard.
  • Service life of button reaches up to 5 million times.
  • 32-Bit ARM processor and scan speed 300scans/sec.
  • Manual trigger/continuous scan(for choice),very comfortable operating.
  • Dopt a highly integrated design, high quality shell, have IP45 protection grade.
  • Connected with computer, laptop. Compatible Operating System for Linux, Windows XP,7,8,10.
  • Application fields:Supermarket, Retail, Warehouse, Logistic, Library, Medical etc.

Barcode Scanner 1D Laser Wired with Stand


Product Specification:  1D Laser Wired Barcode Scanner with Stand
Scanning type Bi-directional
CPU ARM 32-bit Cortex
Light source 650 nm visual laser diode
Trigger Mode Handheld,Continuous
Indication Buzzer & LED
Printing Contract ≥25%
Resolution 4mil
Decoding speed 300scans/sec
Bit error rate 1/5millon
Scanning width 5-30cm
Depth of Field 4mil 2mm-85mm
10mil 2mm-320mm
15.6mil 5mm-580mm
35mil 10mm-900mm
Scanning angle rotor angel±30°,inclination± 55°,declination ± 60°
Anti inference industrial lighting or sun will not make any difference
Decoding Capability UPC/EAN,with complementary UPC/EAN Code128,

Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5,

Code93,MSI,Code11, ISBN,

ISSN,China post,etc

Life Button life 5000,000 times ; laser life:12000 hours
Interface USB / RS232 / PS2 / TTL
Voltage 5/3.3 V
Operating current 40ma(operation mode); 28ma(standby mode)

154ma(max peak)

Temperature Working : -20℃-50℃  Storage: -40℃-60℃
Material ABS+PC
Drop  test 1.8m  fall to concrete
Certificate CE,FCC,RoHS,IP54


Packaging Details

  • Standard List: Scanner *1, USB Cable *1, Manual *1, Stand *1, Box *1.
  • Single Package Size: 185*120*86mm
  • Single Gross Weight: 0.4kg
  • 30pcs/CTN  Carton Size: 438*380*380mm
  • 30pcs/CTN  Carton G.W.:13Kg, N.W:11Kg

16 inch 24V EPSON RJ12 Electronic Cash Drawer

Manual Cash Drawer by Pushing with 330mm 4B5C


Scanning type




Decoding speed


Decoding Capability

UPC/EAN,with complementary UPC/EAN Code128,
Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5,
Code93,MSI,Code11, ISBN,
ISSN,China post,etc


USB / RS232 / PS2 / TTL



Net Weight
